Welcome to Shenzhen Shanxu Pcb Co, ltd

山旭集團創立于2001年，旗下有深圳市山旭電子有限公司，江西山旭精密電路有限司，深圳市寶旭快捷有限公司，香港山旭集團等四家子公司分別涵蓋有PCB電路板，鋁基，銅基線路板，快板，F(xiàn)PC柔性線路板等業務范圍。20年來，山旭人堅持‘’技術領先，快速服務，匠心制造‘’的發展策略，建立了適應多品種、小批量產品設計、生產和服務的柔性化系統平臺，培養了一批電子電路產業鏈的復合型技術、生產和客戶服務團隊，與全球40多個國家的上萬家客戶建立了良好的合作關系。產品已廣泛應用于智能硬件、軍工、通信、工控、醫療、照明、電力、汽車和計算機等領域。

集團擁有專業線路板管理，技術及生產人員800余人，設備總投資三億元人民幣，年產各種精密單，雙面，多層印制電路板40萬平方米，年產值近3億元。我們陸續通過了ISO9001，ISO14001，ISO/TS16949，UL等系列認證。產品全部通過免費飛針測試，品質百分百保證，如果發現不良品，實行“壞一賠五“的賠付服務，板材可承諾采用南亞，生益，建滔(KB)，A級軍工料，公司可提供板材證書，產品綜合合格率達99%以上，產品交貨準期率達98%以上，正是因?yàn)榧瘓F(tuán)一直堅持“質量先行，服務快速，交期準時”的發展方針，多次獲得多家知名企業最佳供應商稱號。

Shenzhen Shanxu Pcb Co, ltd is engaged in 1-20 layers PCB manufacturing, with more than 600+ skilled workers, equipment investment is over 300 million RMB, yearly production capacity is more than 3 million square meters. Our products includes metal base (Alu base, Cu base), high Tg(Tg170 and tg180), thick copper (max 6oz), thick gold (up to 150U”), mixed-material and so on. Its products are applied in many fields, such as automotive, lighting, electronic, mechanical, medical, telecommunication, automation etc.

At present, our business extends far into Europe, North America, Southeast Asia, Australia and other countries. We win good reputation from those areas above by good quality, reasonable price, 7*24 hours service, fast delivery and continuous upgrading technology.

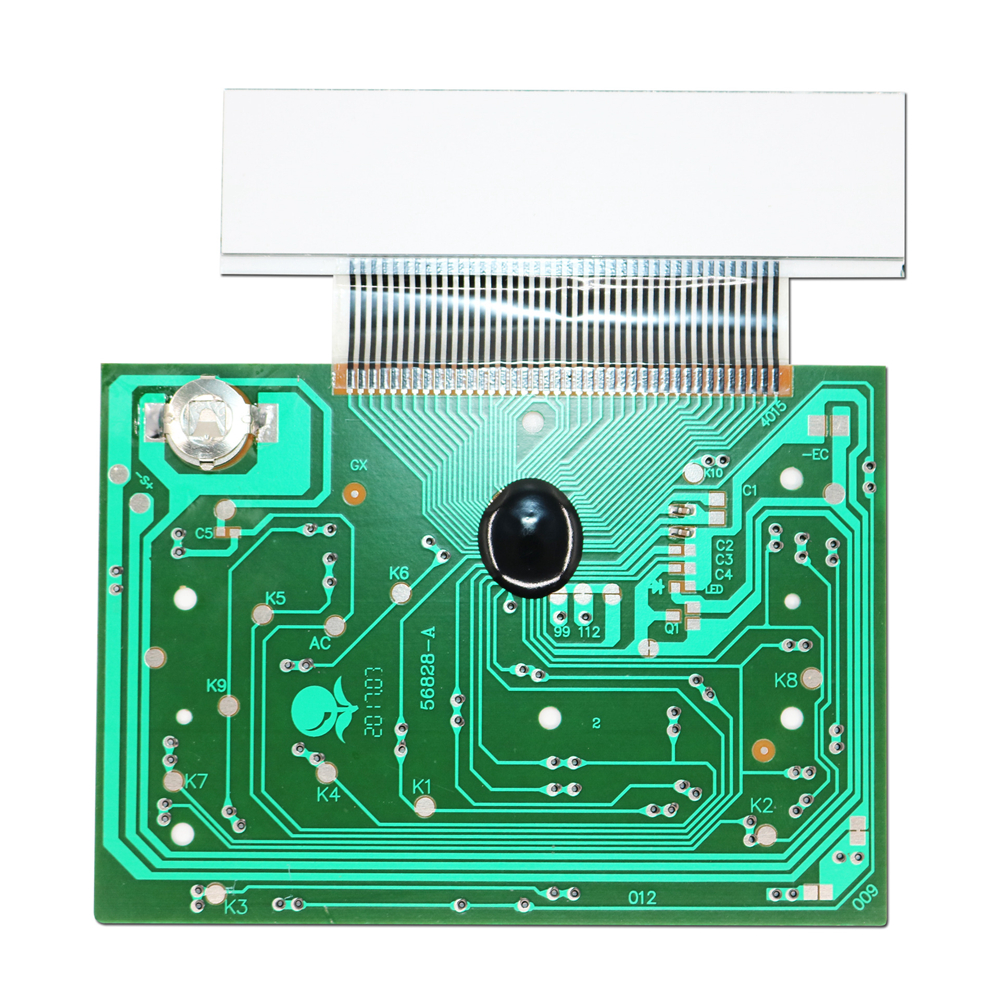

1 layer PCB board

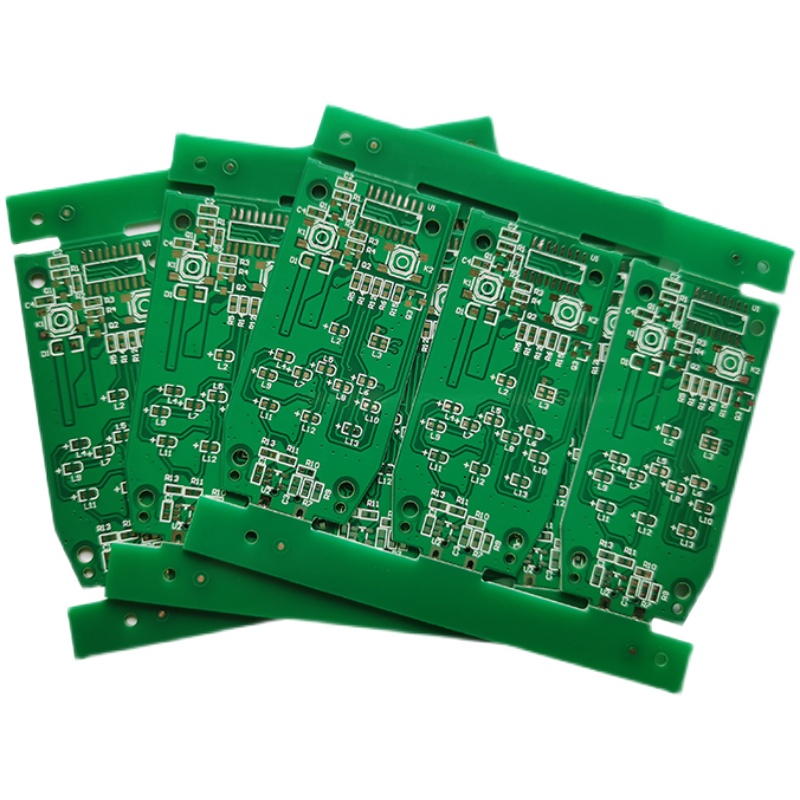

2 layers PCB board

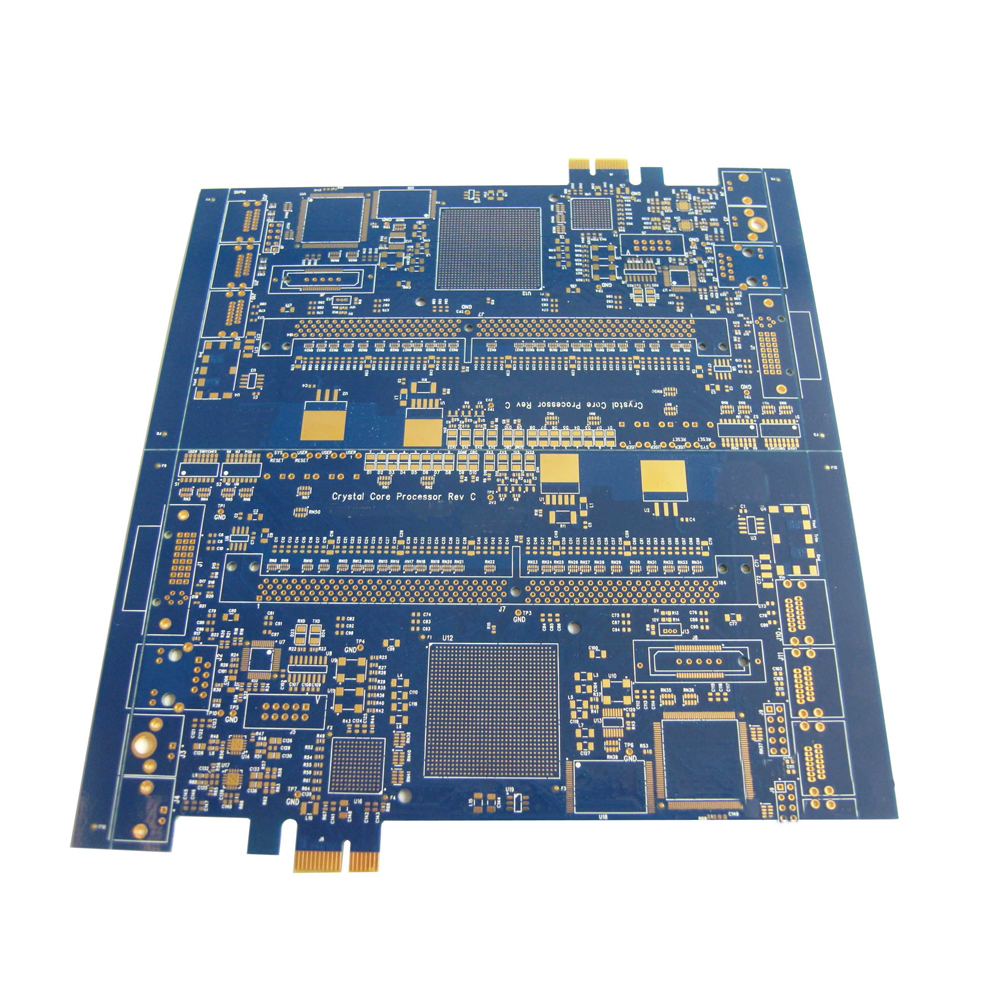

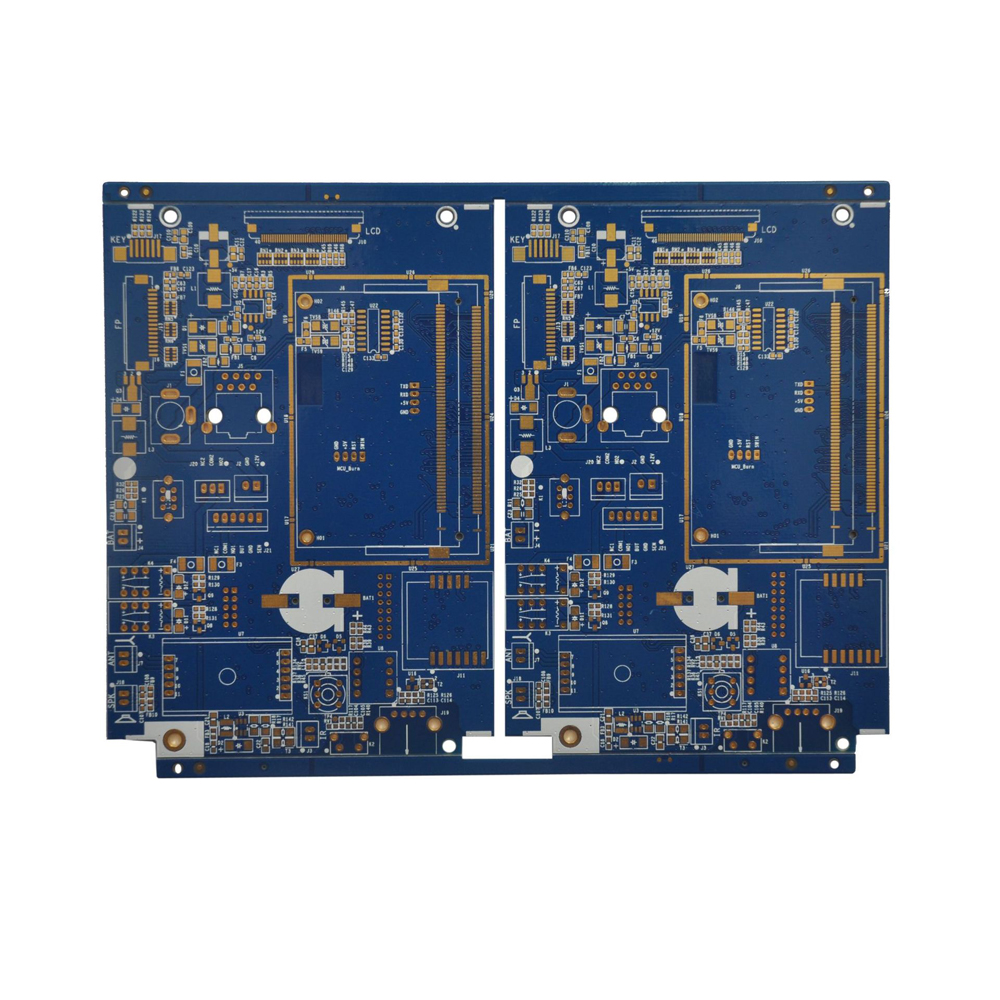

Multi-layers PCB

Rigid-flex PCB board

The latest hot selling PCB products

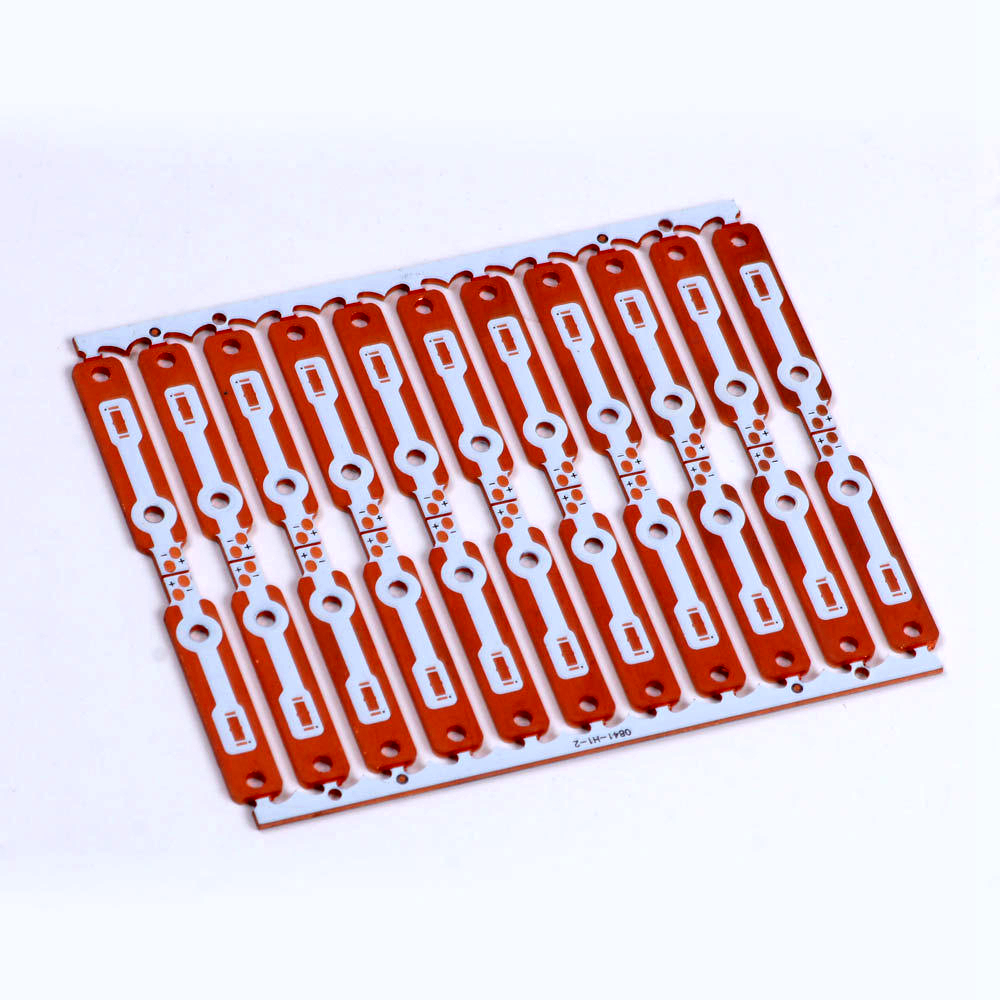

Metal core aluminium or copper printed circuit boards

These materials are especially intended for circuit boards whose thermal dissipation needs are high. This technology, given its conditions, fits perfectly in the market of circuit boards for illumination (energy efficiency), signage, automotive, etc. The use of materials with different thermal conductivity values enables our customers to adapt their designs to determined conditions.

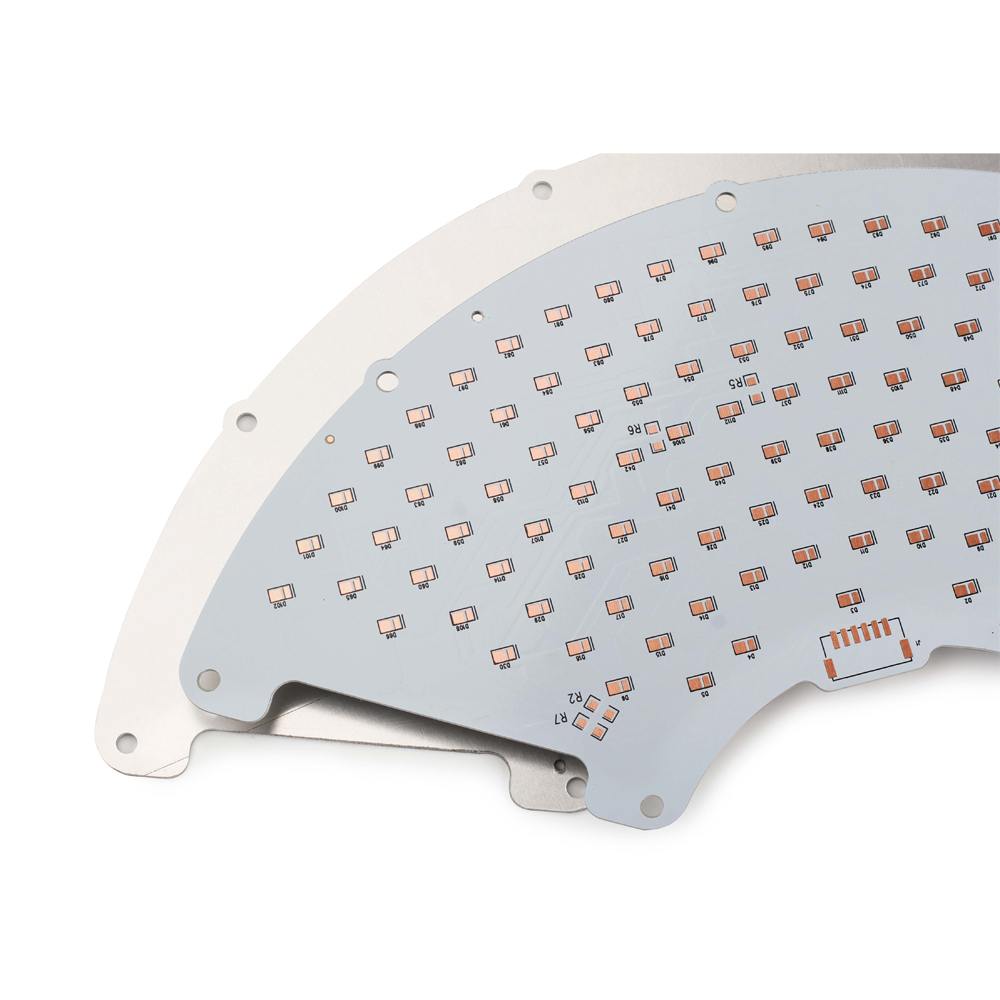

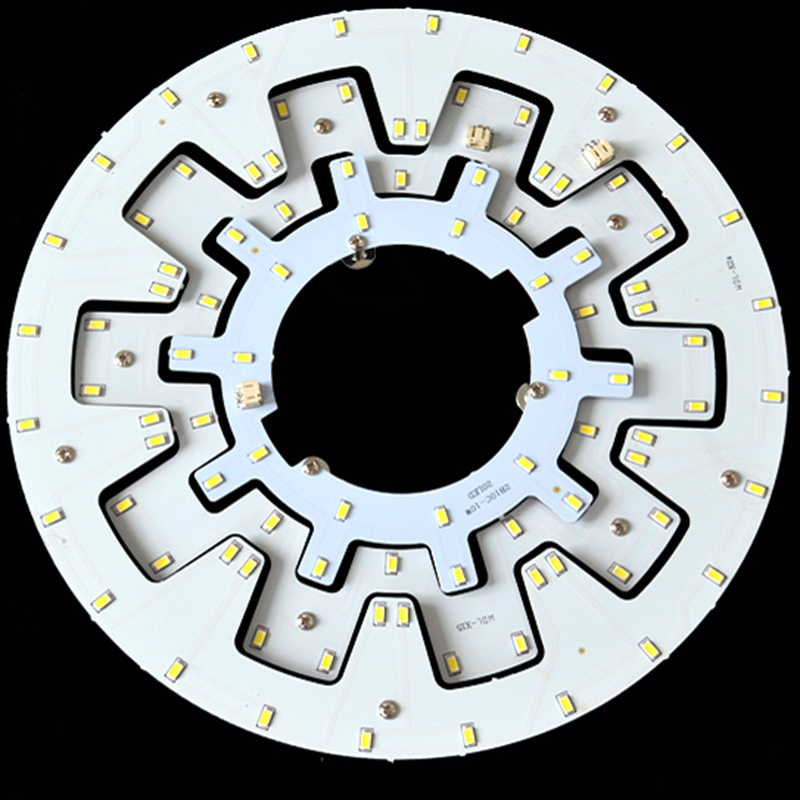

High Thermal Conductivity LED Bulb pcb boards

Our company's review documents will be produced in accordance with our plate-making process rules, and we cannot handle any data design issues for you. Please review the data and place an order. Due to the irreversibility of PCB production, arrangements will be made two hours after payment, and data cannot be modified after production is arranged. Please make sure that the PCB file is correct to avoid unnecessary losses.

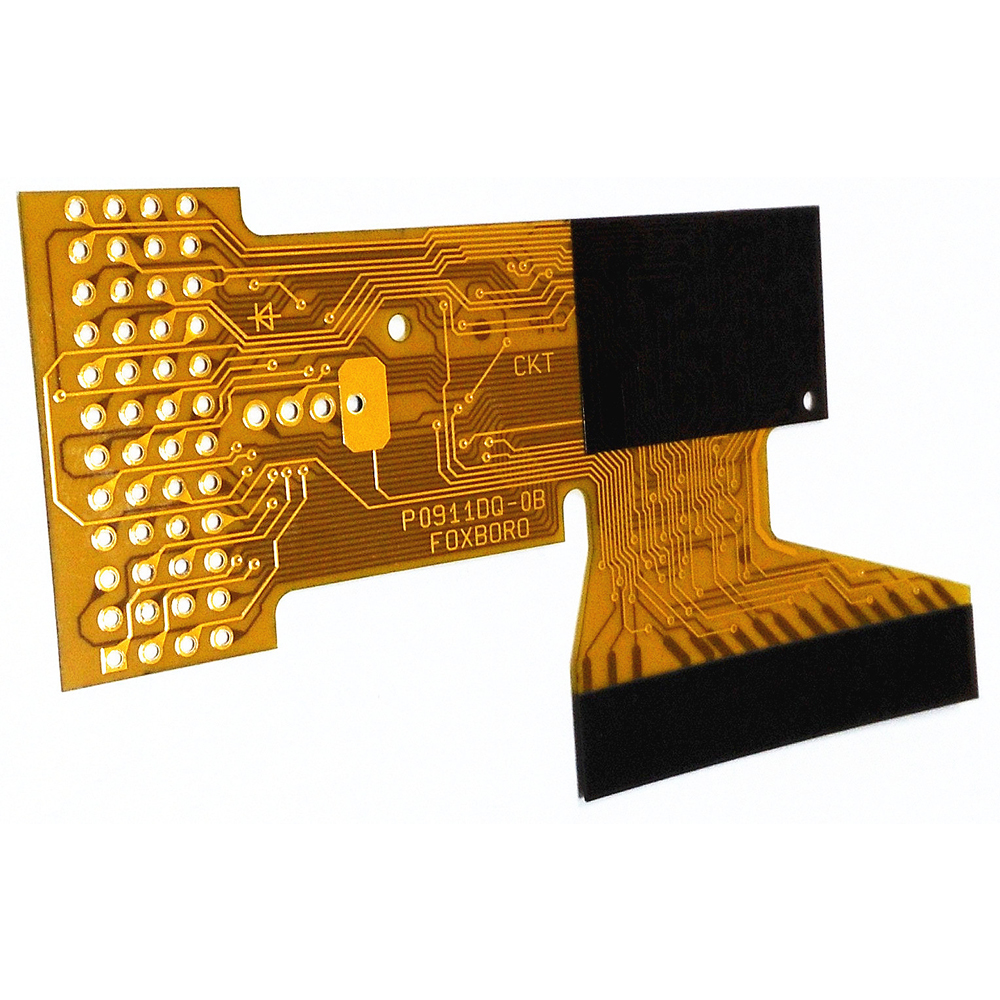

Flexible Printed Circuits Boards

Flexible Printed Circuits Boards made their introduction into the electronics industry as substitutes for cable assemblies. They introduced a number benefits to designers such as reduced weight, reduced size and higher reliability, all at a low cost. As time has passed, the technology has gone through refinement. Today, Flexible PCBs are still used as replacement for cable assemblies, however their scope has evolved to the point of also being able to replace traditional Rigid PCBs. With the ability to mount components based on both SMT and through hole technology, available not only as single sided, but also as double sided THP and Multi-layer technology, flexible PCBs are today utilised in a multitude of applications.

Rigid-flexible printed circuit board

Rigid-Flexible Printed Circuits Boards are a hybrid PCB manufactured by combining rigid PCB technology with Flexible PCB technology. The integration of these two technologies into one product enables a PCB assembly to be manufactured with a high level of integration, reducing assembly cost, improving reliability and offering a solution that can resolve technical and mechanical problems not addressed by other technologies on their own. Rigid-Flex PCBs are differentiated from “Flexible PCBs with stiffener” in that the stiffener does not have any electrical conductors.

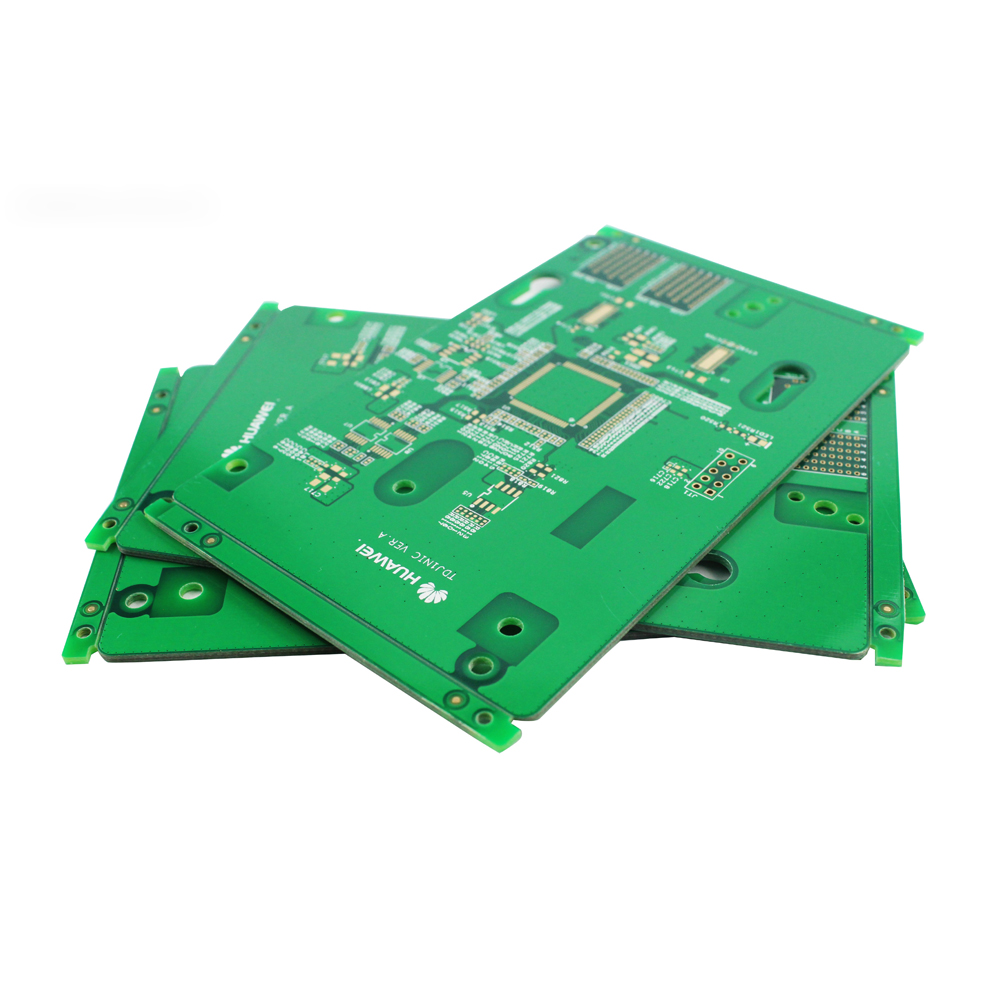

Rigid PCB

The science of reliability, on-time delivery and competitive pricing. Shanxu PCB is committed to offering the highest quality printed circuit boards’ at the most competitive pricing. We aim to provide customer excellence on all orders whether you need a simple sample or a time-critical and technologically complex multi-layer printed circuit board product. Our highly specialized team can meet all your PCB needs.

High Frequency pcb/RF PCB & Ceramic PCB & Rogers PCB

High frequency pcb, The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

High Frequency PCBs

The components are developing towards high speed, low consumption, small volume and high anti-interference. PCB design is an important stage of electronic product design. It can realize the connection and function between electronic components, and is also an important part of power circuit design. High frequency circuit has the higher integration and the higher layout density, so it is very vital how to make layout more reasonable and more scientific. PCB can realize the connection and function between electronic components and is also an important part of power circuit design. When the electrical schematic diagram has been designed, several functional plates shall be adopted according to the structural requirements and functional division, and the physical size and installation method of each functional plate PCB shall be determined. The convenience of debugging and maintenance, as well as shielding, heat dissipation and EMI performance shall also be considered. Engineers are required to determine the layout wiring plan, such as the key circuits, the signal lines, the details of wiring methods, and the wiring principles to be followed. Several stages of the PCB design process must be examined, analyzed, and modified. Only after the whole layout process is completed and examined through comprehensive rule inspection, can it be further processed.

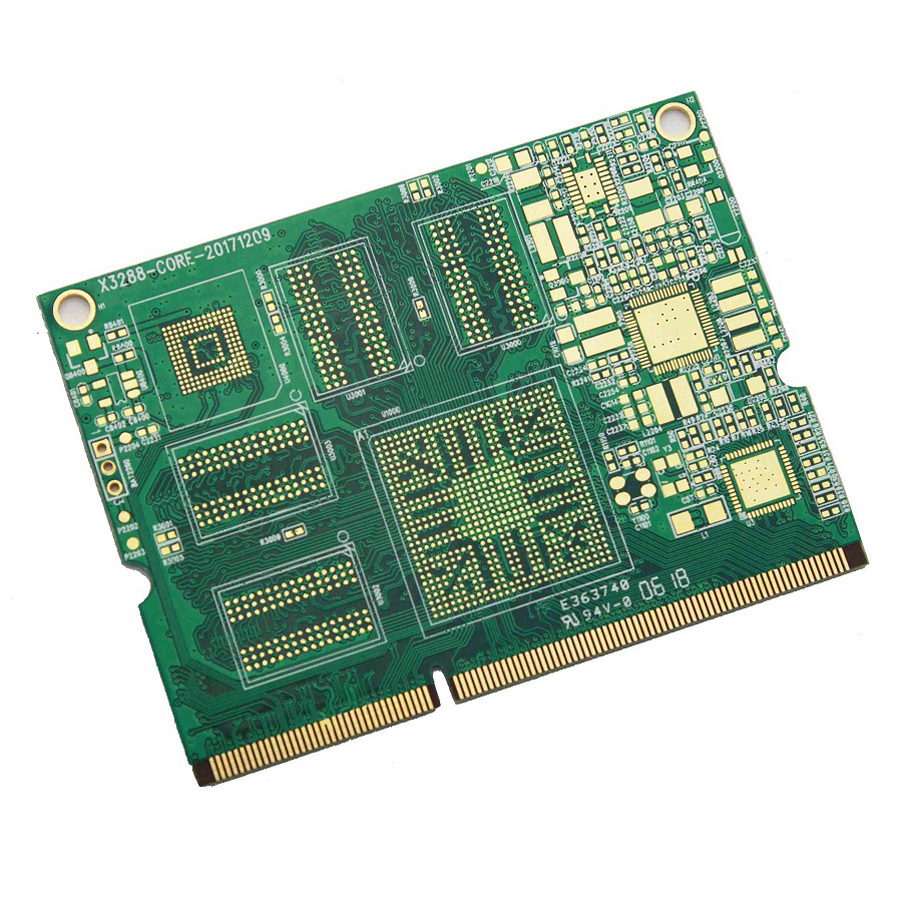

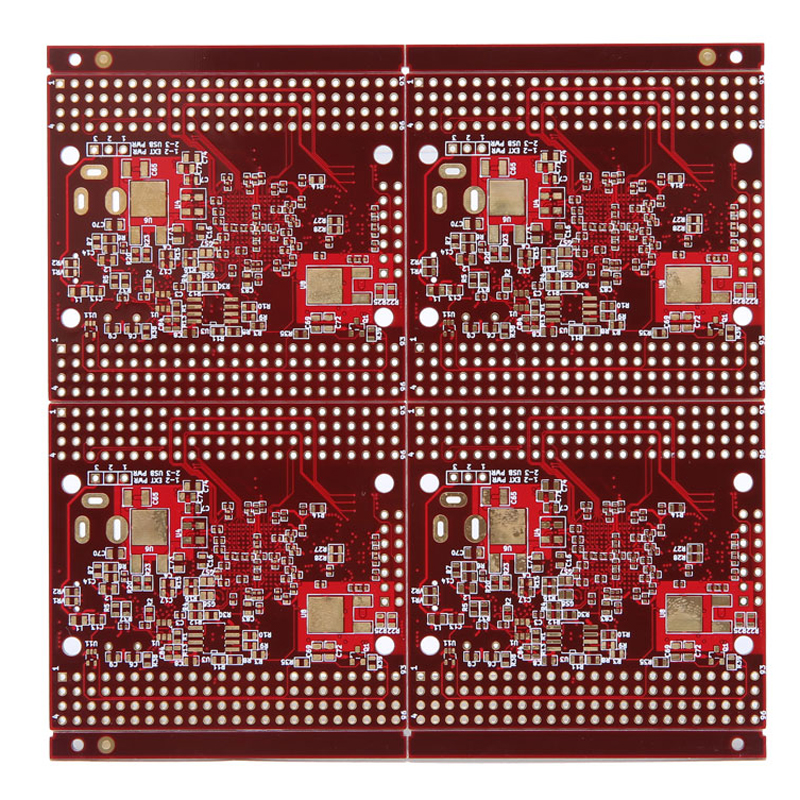

High Density Interconnect (HDI) PCB

To meet the various needs of customers all over the world, Shanxu pcb not only provides common PCB fabrication and PCB assembly, but also High Density Interconnect (HDI) PCB turn-key electronics manufacturing services. The most manufacturing techniques for HDI PCB boards include blind & buried via, micro-via, epoxy resin or copper filled via, Controlled Impedance, fine lines in BGA pads, via in pad, etc. The HDI boards we manufactured refer to many fields like IoT, telecom electronic, smart control, industrial control and digital devices.

Focus on the PCB news and approch us

Comparison Between PCB Prototyping Service and Standard PCB Fabrication Service

There are different Quality Class Standards in the industry. Most commonly followed is class 1 & 2. Class 1 is for General Electronic Products and for testing and verification of Designs. Class 2 is for Dedicated Service Electronic Products such as communication equipment,sophisticated business machines, instruments where high performance and extended life is required and for which uninterrupted service is desired. Class 3 products are used in certain types of medical, aeronautics, and military applications for which uninterrupted and high reliability service is required.

The Domestic Capital Era of China Printed Circuit Boards

In the short term, the copper clad laminate industry is in a price increase cycle, and the downstream demand boom drives the company's single-quarter profit margin upward. In the medium and long term, the PCB industry's supporting facilities will force upstream domestic manufacturers to expand production. In 2020, the year-on-year growth rate of capital expenditure of PCB listed companies will return to a high level. A new era.

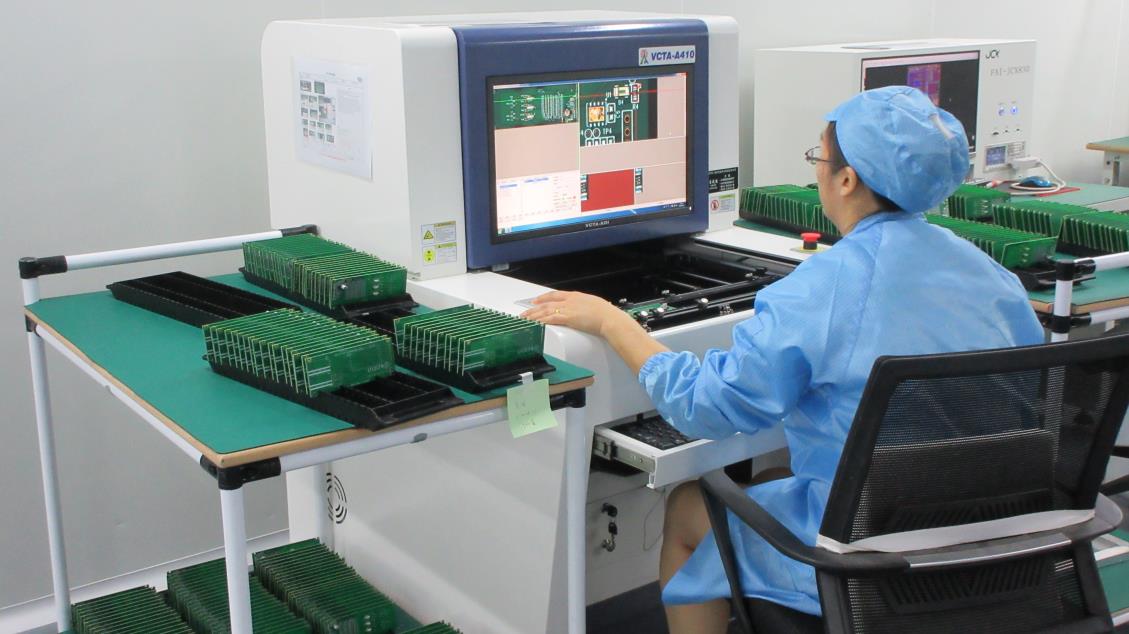

QCS For Pcb Assembly

Defects AOI can cover primarily come in soldering and components categories. In terms of soldering, defects can range from open circuits, solder bridges, solder shorts, insufficient solder to excess solder. Component defects include lifted lead, missing component, misaligned or misplaced components.
